ESP-WROOM-32 ESP-32

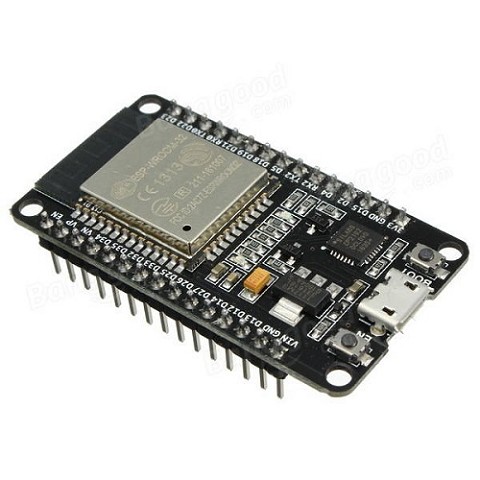

The DOIT Esp32 DevKit v1 is one of the development board created by DOIT to evaluate the ESP-WROOM-32 module. It is based on the ESP32 microcontroller that boasts Wifi, Bluetooth, Ethernet and Low Power support all in a single chip.

Device Summary

• Microcontroller: Tensilica 32-bit Single-/Dual-core CPU Xtensa LX6
• Operating Voltage: 3.3V
• Input Voltage: 7-12V
• Digital I/O Pins (DIO): 25
• Analog Input Pins (ADC): 6
• Analog Outputs Pins (DAC): 2
• UARTs: 3
• SPIs: 2
• I2Cs: 3
• Flash Memory: 4 MB
• SRAM: 520 KB
• Clock Speed: 240 Mhz
• Wi-Fi: IEEE 802.11 b/g/n/e/i
